Deployable Shooting Range
A modular, armoured shooting range that brings controlled live-fire training to where personnel are, combining protected firing space, ballistic containment, ventilation, acoustic treatment and range control on a transportable platform. Range length scales with additional modules, and the six-module configuration gives a 15 metre range operational within 12 hours of relocation.
A range built around containment.

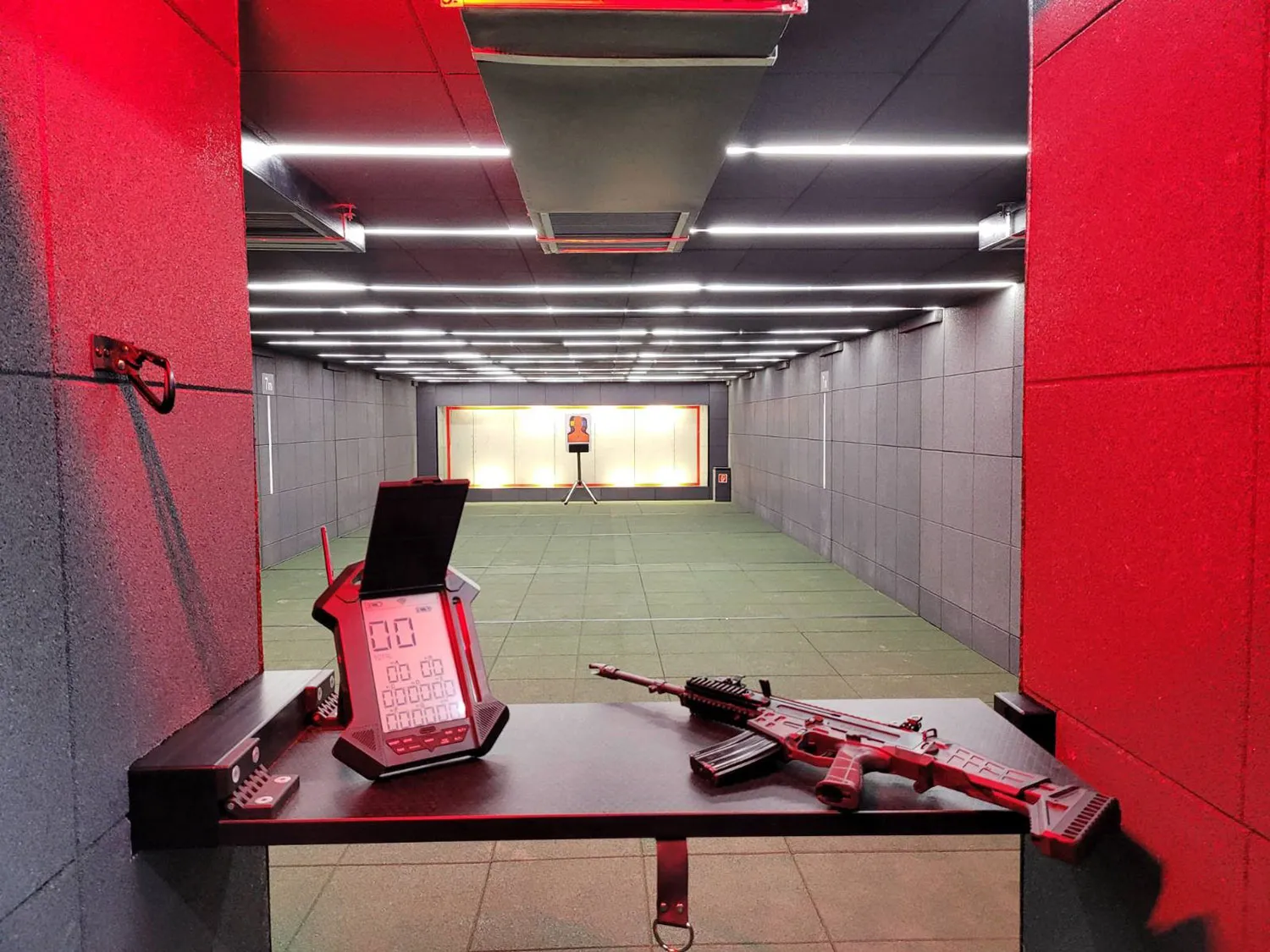

The deployable shooting range creates a controlled environment for live-fire exercises without depending on a conventional permanent range. The underlying system uses armoured modules and protected connections to contain projectiles within the range. SSAB Armox 600T armour, 360-degree protection and ricochet-resistant internal surfaces in its current configuration. It also incorporates a dedicated bullet trap designed to absorb projectile energy and collect spent material.
A separate control position supports supervision of training and operation of technical systems.
More than a ballistic box.
Safe live-fire training depends on ventilation, visibility, range control and acoustic performance as much as ballistic containment.

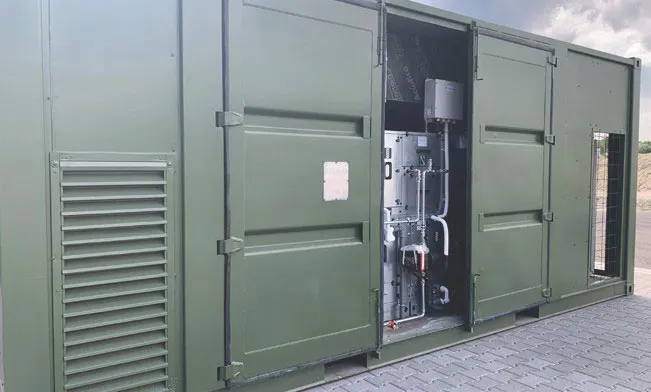

The shooting-range system therefore incorporates dedicated ventilation for extraction of shooting gases and fresh-air supply, together with heating and cooling. Specialised sound-absorbing construction intended to substantially reduce external noise during operation.
The modular layout means shooting distance can be extended by adding further range sections, allowing the infrastructure to evolve according to training requirements.
Hyper customisability delivered
Every build is finished to your specification. Rather than choosing from a fixed set of options, you tell us what the project needs and we determine the right way to build it, from cladding and roofing to interiors, layout and add-ons. What you see here shows the range of what's possible. The right solution is something we work out with you.
Quality assured
Every structure meets rigorous manufacturing standards.
Fast to deploy
Our modular system is built to move quickly, getting structures on-site.
Any scale, any brief
From a single unit to a full site installation, we scope and deliver.
With you throughout
From initial enquiry to long-term support, we're a partner you can rely on.
Answers to questions you may have
Can’t find what you’re looking for?
Have a question about our modules, process, or lead times? Here are some of the most common questions we get asked.

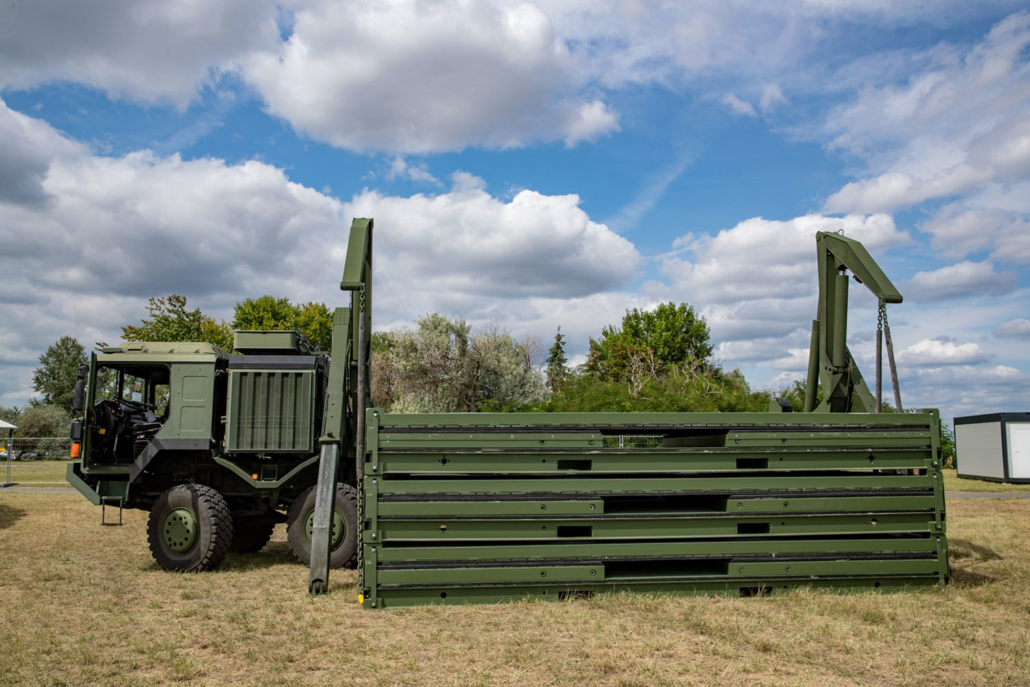

The current configuration uses six foldable protected modules to provide a 15-metre static shooting range. Additional modules can be used to increase the shooting distance.
The system can be relocated and made fully operational within 12 hours, depending on configuration and site conditions.
The current configuration supports up to four-person static shooting exercises or single-person dynamic exercises.
Yes. The current system is designed with 360-degree armoured containment and ricochet-resistant internal surfaces.

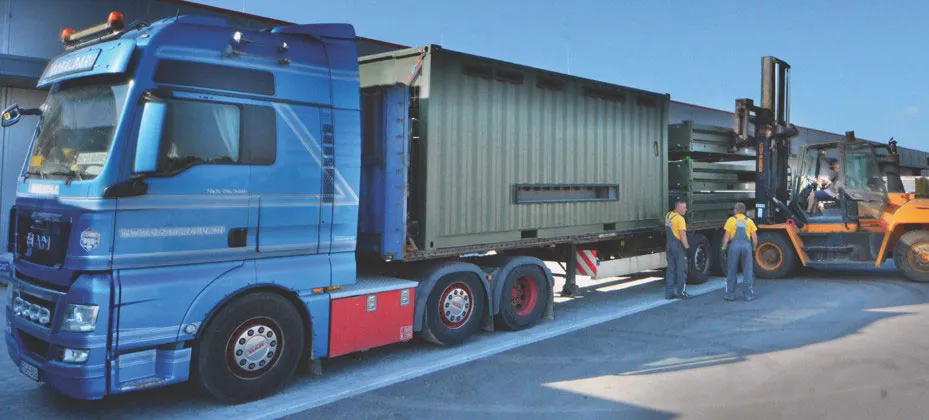

Yes. Mobility is a defining feature of the system, allowing the range to move between training locations.
